Kubernetes

Restrict API server access by IP address

Restrict access to the Kubernetes API server by IP address

The Kubernetes API server is a highly privileged system and should be secured. If you have a VPN available, you should restrict access to the API server by configuring firewall rules to only allow traffic from your VPN's IP address.

When attempting to access a Kubernetes API server that has restricted access by IP enabled, traffic not originating from a listed IP will be denied access.

Resticting access by IP is a highly recommended security feature and is available for any cluster hosted by Avisi Cloud.

Configuring IP restrictions

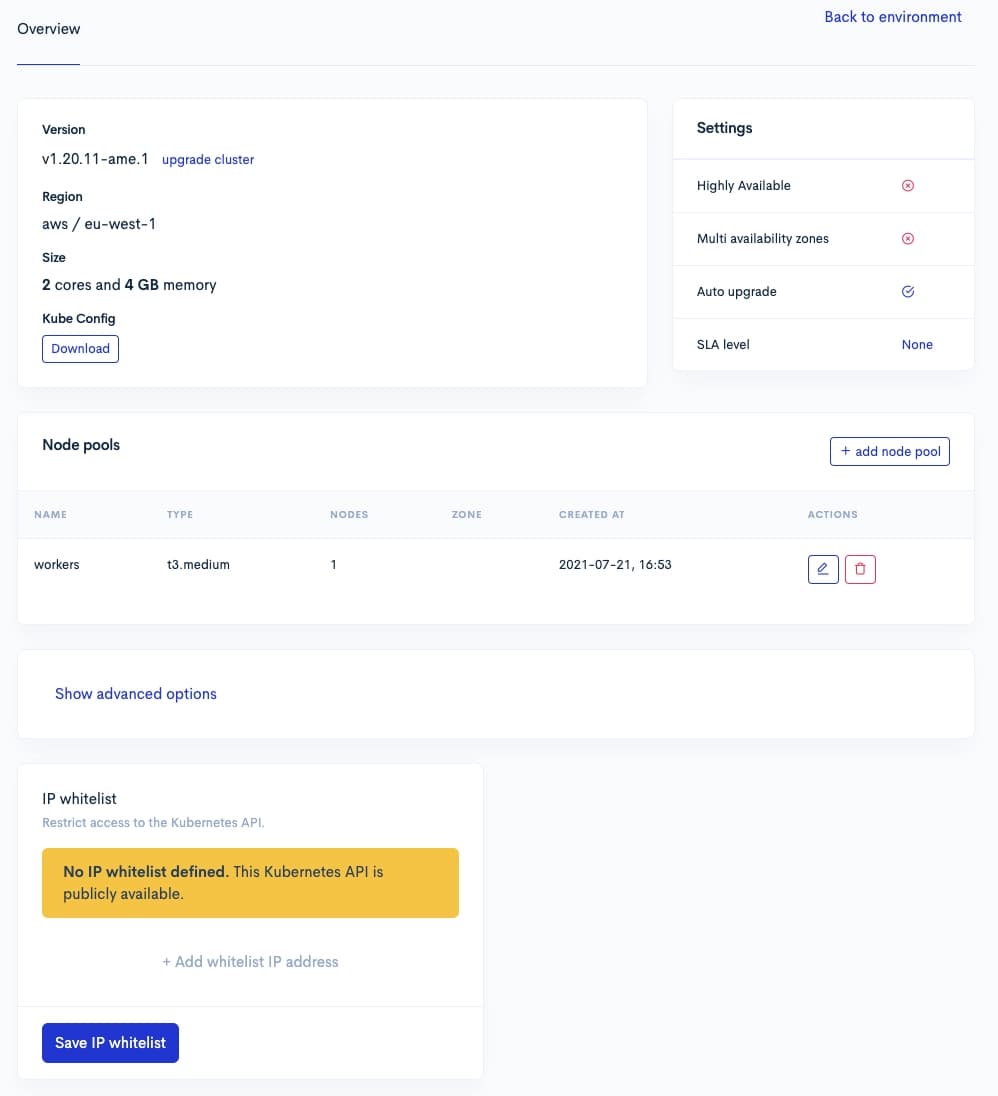

When you open the cluster's detail page, you can get an overview of all settings available. On the bottom is the option to restrict access to the Kubernetes API server.

Rectangle

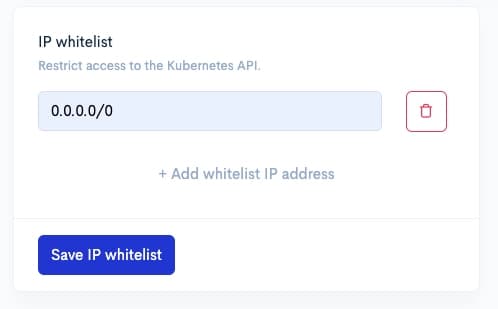

You can configure any IPv4 CIDR address block in here.

Rectangle

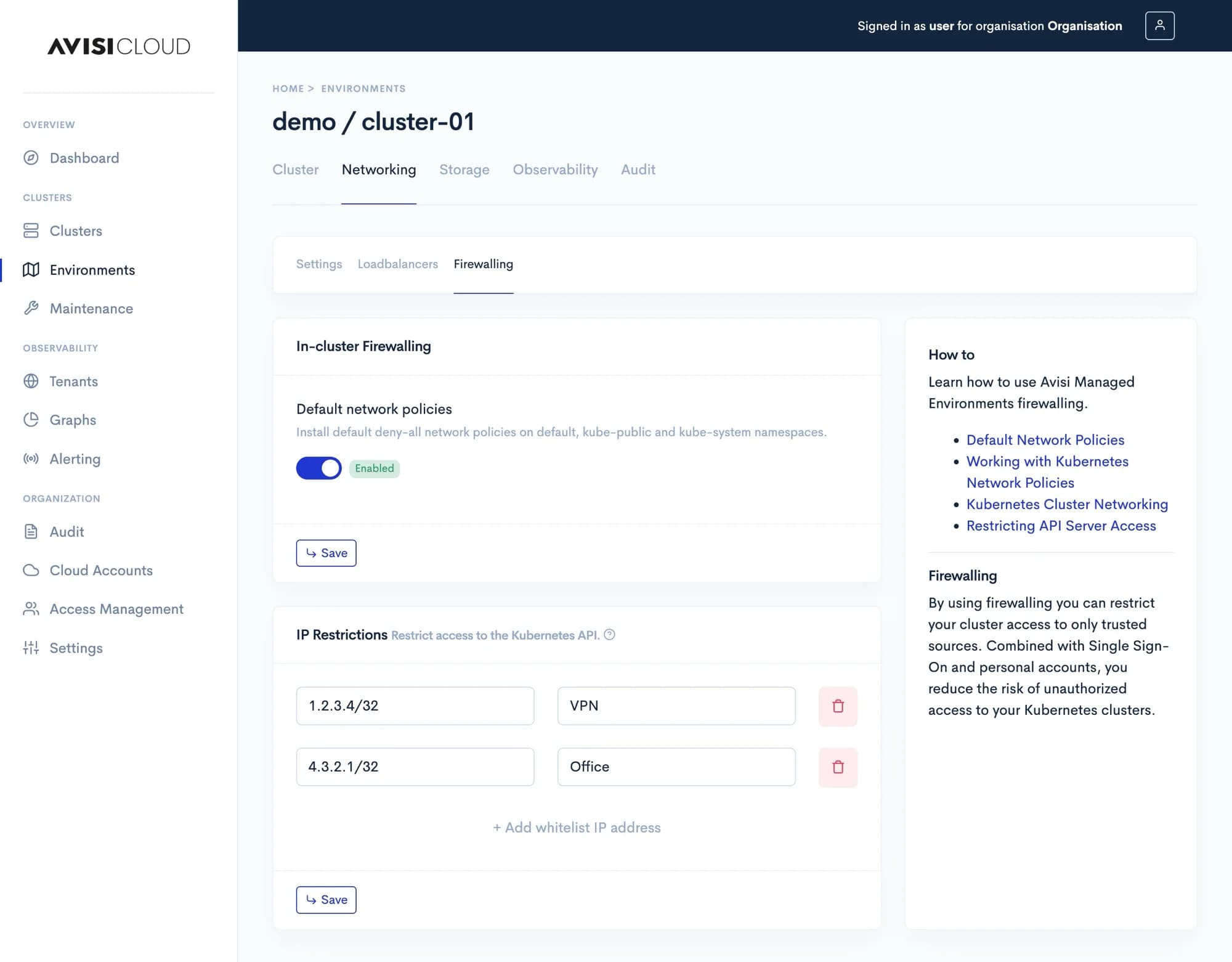

When you configure a new CIDR range, press the save button below. The configuration for the API server will update in the background. This process usually takes between one and three minutes.

Notes

  • Anyone attempting to access a restricted API server from a different IP range will receive an access denied.
  • You can configure up to 10 CIDR ranges per API server.
  • Traffic coming from your cluster is allowed even if it's CIDR range is not configured.
